CW2-2.5T
- Thermal performance
- Seismic (AAMA 501.4 and 501.6 standards)
- Low- to mid-rise applications
- Blast mitigation, hurricane resistance
- Concealed fastener joinery creates smooth, monolithic appearance
- Shear block fabrication method
- Corner mullions available
- Offers integrated entrance framing systems
- Silicone compatible glazing materials for long-lasting seals
- Finishes: Clear Anddized, Black Addized
- Painted finishes in standard and custom colours

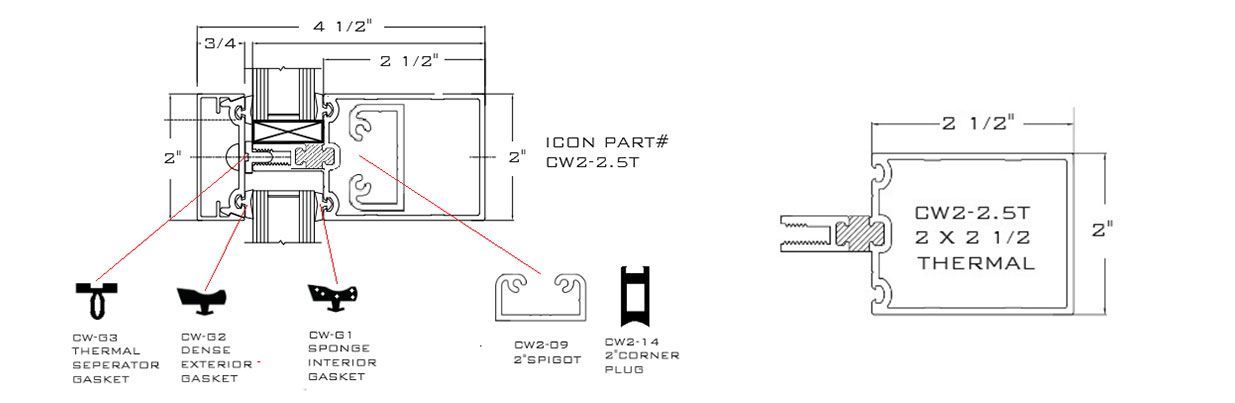

MATERIAL DIMENSIONS
WIDTH (SIGHTLINE): 2" (50.8)
BACK SECTION DEPTH: 2 1/2" (63.5)
OVERALL ASSEMBLY DEPTH: 4 1/2"(114.3)
ALLOY: 6063
TEMPER: T6
FINISHES: CLASS I , CLASS II , PAINTED IN CONFORMANCE WITH
AAMA 611,2603,2604,2605
GLAZING:1" OVERALL THICKNESS
GASKETS:EPDM
THERMAL BREAK:EPDM / URATHANE
TESTED IN ACCORDANCE WITH NAFS/AAMA/WDMA/CSA101/1.S.2/A440-22
CLASS RATING: CW PG100
ASTM E283 AIR
AIR INFILTRATION:+75Pa 0.0 PASS
AIR EXFILTRATION:-75Pa 0.2PASS
ASTM E547 WATER
WATER PENETRATION 720Pa PASS
6mm clear LOWE#2 // AIR SPACE (ARGON) // 6mm clear
U VALUE W/M2-K: 1.81
U-VALUE BTU/H-FT2F: .32
SHGC-SOLAR HEAT GAIN COEFFICIENT: .25
CI-CONDENSATION INDEX: 65
VLT-VISIBLE LIGHT TRANSMITANCE: .58
6mm clear LOWE #2 // AIRSPACE(ARGON) // 6mm clear LOWE #4
U VALUE W/M2-K: 1.56
U VALUE BTU/H-FT2F: .28
SHGC-SOLAR HEAT GAIN COEFFICIENT: .25
CI-CONDENSATION INDEX: 57
VLT-VISIBLE LIGHT TRANSMITANCE: .57
| Face Width | Sight Line: 2" (50.8mm) |
|---|---|
| System Depth | Dual Glazed: 225.4mm (8 7/8”) Triple Glazed: 2244.5mm (9 5/8”) |
| Back Member Depth | 2 x 2-1/2 back section (4-1/2 overall) | 2x4 back section (6" overall) |
| Glass | Dual Glazed:25.4mm (1”) Triple Glazed:44.5mm (1 3/4”) |
| Tested in Accordance | |
| NAFS/AAMA/WDMA/DSA101/1.S.2/A440-22 | |
| Glass rating | CW Glass |
| Performance Grade | PG100 |
| Air | ASTM E283 +75PA 0.0 // -75 0.1 PASS |
| Water | ASTM E547 720Pa (15psf) PASS |
