Curtain Wall

CW2.5 Series

A 3d model of a glass wall on a white background.

CW2.5

  • Thermal performance
  • Seismic (AAMA 501.4 and 501.6 standards)
  • Low- to mid-rise applications
  • Blast mitigation, hurricane resistance



CW2 Series Parts:

  • CW2.5

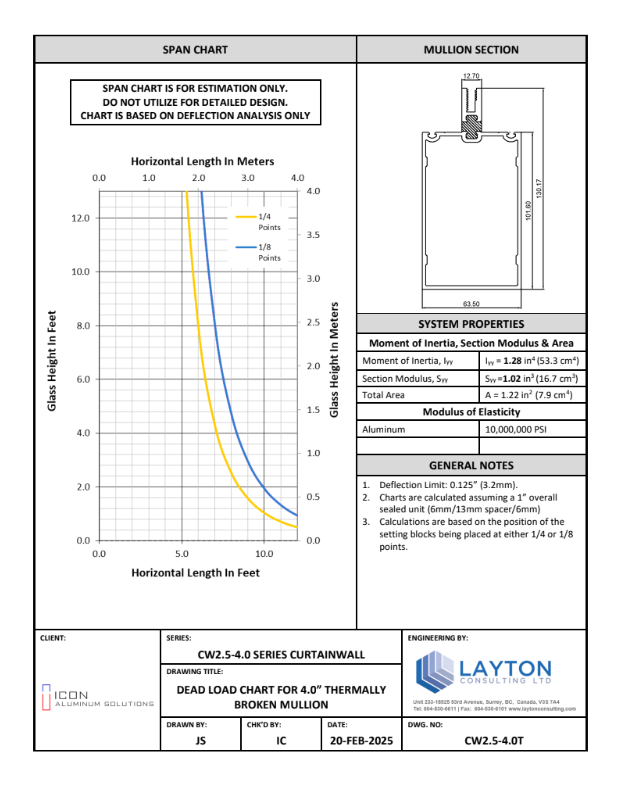

  • CW2.5-04T
  • CW2.5-5.25

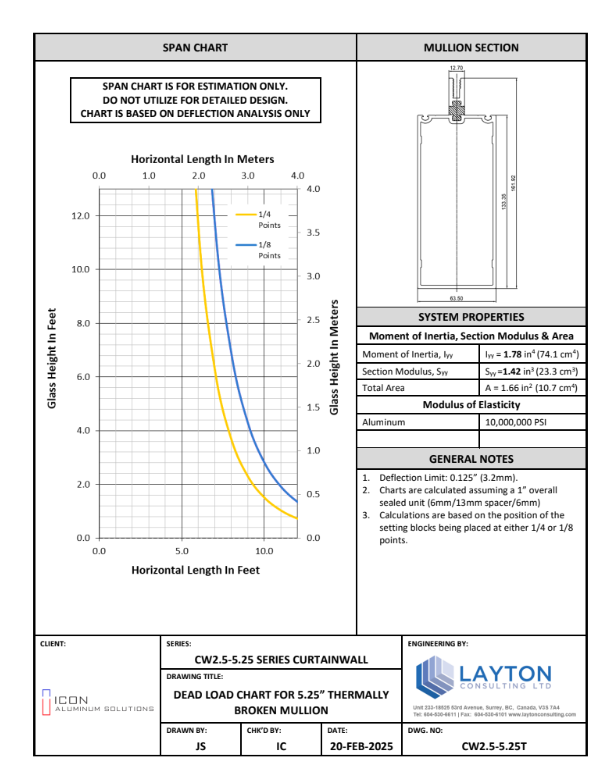

  • CW2.5-5.25T
  • CW2.5-05
  • CW2.5-06
  • CW2.5-09

  • Concealed fastener joinery creates smooth, monolithic appearance
  • Shear block fabrication method
  • Corner mullions available
  • Offers integrated entrance framing systems
  • Silicone compatible glazing materials for long-lasting seals
  • Finishes: Clear Anddized, Black Addized
  • Painted finishes in standard and custom colours

Click to see details:


Click to See Details

MATERIAL DIMENSIONS

WIDTH (SIGHTLINE): 2" (50.8)

BACK SECTIONDEPTH: 4" (101.6)

OVERALL ASSEMBLY DEPTH: 6"(152.4)

ALLOY: 6063

TEMPER: T6

FINISHES: CLASS I, CLASS II, PAINTED IN CONFORMANCE WITH AMA 611,2603,2604,2605

GLAZING:1" OVERALL THICKNESS

GASKETS:EPDM

THERMAL BREAK:EPDM / URATHANE

TESTED IN ACCORDANCE WITH NAFS/AAMA/WDMA/CSA101/1.S.2/A440-22

CLASS RATING: CW PG100

ASTM E283 AIR

AIR INFILTRATION:+75Pa 0.0 PASS

AIR EXFILTRATION:-72Pa 0.2 PASS

ASTM E547 WATER

WATER PENETRATION 720Pa PASS

6mm clear LOWE#2 // AIR SPACE (ARGON) // 6mm clear

U VALUE W/M2-K: 1.87

U-VALUE BTU/H-FT2F: .33

SHGC-SOLAR HEAT GAIN COEFFICIENT: .25

CI-CONDENSATION INDEX: 57.33

VLT-VISIBLE LIGHT TRANSMITANCE: .58

CW2 SERIES

2 X4 THERMALLY

BROKEN

CURTAINWALL

6mm clear LOWE #2 // AIRSPACE(ARGON) // 6mm clear LOWE #4

U VALUE W/M2-K: 1.63

U VALUE BTU/H-FT2F: .29

SHGC-SOLAR HEAT GAIN COEFFICIENT: .25

CI-CONDENSATION INDEX: 57.33

VLT-VISIBLE LIGHT TRANSMITANCE: .57




Face Width Sight Line: 2 - 1/2" (63.5mm)
Back Member Depth 2-1/2" x 4" Back Section (6" Overall) | 2-1/2" x 5-1/4" Back Section (7-1/4" Overall)
Glass Dual Glazed:25.4mm (1”) Triple Glazed:44.5mm (1 3/4”)
Tested in Accordance
NAFS/AAMA/WDMA/DSA101/1.S.2/A440-22
Glass rating CW Glass
Performance Grade PG100
Air ASTM E283 +75PA 0.2 // -72pa 0.1 PASS
Water 720Pa (15psf) PASS
